Quick Answer
AC water leaks inside your Winter Haven home are almost always caused by a clogged condensate drain line (the most common cause in Florida), a cracked or rusted drain pan, a frozen evaporator coil that thaws and overflows, or improper unit installation. The fix depends on the cause — a clogged drain is often a $100 to $250 service call; a cracked pan or coil issue costs more. Acting quickly prevents water damage and mold.

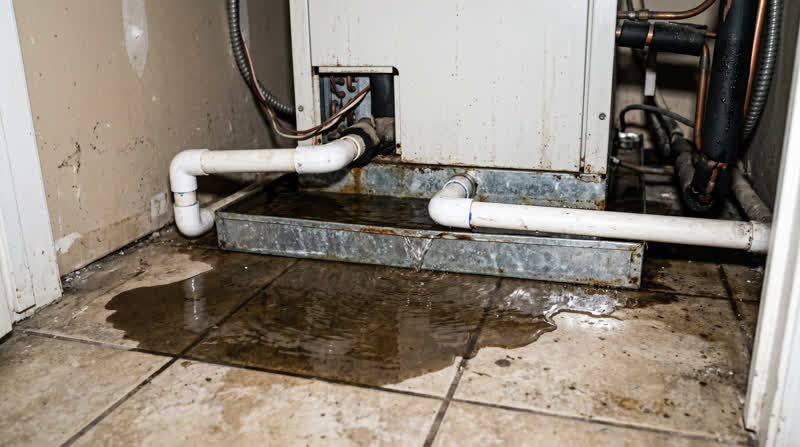

Water pooling around your indoor air handler is one of the most common emergency calls we receive from Winter Haven homeowners throughout the summer. Florida's humidity means your AC removes enormous quantities of moisture from the air — a properly functioning 3-ton AC in Winter Haven's climate can remove 2 to 5 gallons of water per hour on humid days. All of that water needs somewhere to go. When it doesn't drain properly, it ends up on your floor, in your ceiling, or soaking into your walls.
The good news is that most indoor water leaks are caught before they cause serious structural damage. The not-so-good news: even a few days of water sitting in a drain pan or soaking into drywall can produce mold in Florida's warm conditions. When you see water around your AC, act the same day.
Cause 1: Clogged Condensate Drain Line
This is by far the most common cause of AC water leaks in Winter Haven. The condensate drain line is a PVC pipe — typically 3/4 inch diameter — that carries condensate water from the drain pan under the evaporator coil to a floor drain, utility sink, or outside discharge point. In Florida's warm, humid environment, algae grow inside this pipe constantly. Without treatment, the algae build up into a clog that backs water up into the drain pan and eventually overflows.
Signs of a clogged drain line:
- Water pooling directly under the indoor unit
- The system shuts off by itself (a safety float switch triggered by rising water in the pan)
- A musty smell from the vents, indicating water has been standing in the pan
- Visible water or staining in the secondary drain pan (the outer pan under the primary pan)
A drain line clearing service costs $100 to $250 and is one of the fastest repairs in HVAC. The technician uses a wet-vac at the drain outlet and nitrogen pressure to clear the clog, then flushes the line. This also reveals whether the float switch is working correctly — a safety device that shuts off the system when water in the pan reaches a set level.
Cause 2: Frozen Evaporator Coil Thawing
When an evaporator coil freezes — due to restricted airflow from a clogged filter or low refrigerant — the resulting block of ice can overwhelm the drain pan when it thaws. The pan simply isn't designed to handle the volume of water from a large ice formation melting. This is a two-problem situation: the frozen coil is the primary issue, and the water overflow is a symptom.
If you find water after your system has been off or after you noticed it was blowing warm air, a recently thawed frozen coil may be the cause. After soaking up the standing water, check the filter and inspect the evaporator coil through the air handler access panel. Call for service before restarting — the system will refreeze until the underlying cause is fixed.
Cause 3: Cracked or Rusted Drain Pan
The primary drain pan sits directly under the evaporator coil and catches condensate before it enters the drain line. In older systems — particularly units installed more than 10 to 15 years ago — this pan can rust through or develop hairline cracks that cause water to leak directly onto the floor rather than into the drain line. Older homes in neighborhoods like Lake Region, Inwood, and the downtown Winter Haven area often have systems old enough to have this problem.
A cracked primary pan can sometimes be repaired with drain pan sealant as a temporary measure, but replacement is the proper fix. Secondary drain pans (the larger outer pans that hold the entire air handler) can also crack or rust. Secondary pan issues are more serious, as they are typically installed to catch overflow if the primary drain system fails.
Cause 4: Improper Installation or Incorrect Slope
An air handler must be installed with a slight slope toward the drain so condensate flows to the drain outlet by gravity. If the unit was installed level or slightly tilted the wrong direction — a mistake that happens with some installations — water can pool at the end of the pan away from the drain and eventually overflow. This is more common in attic installations where the mounting wasn't checked after installation settled.
If your system has leaked water consistently since installation, improper slope is worth investigating. A technician can use a level to verify the installation angle and correct it if needed.
What to Do Right Now
If you find water around your indoor unit today:
- Turn the thermostat off to stop the system from producing more condensate
- Use towels or a wet-vac to remove standing water
- Check whether the safety float switch is working — some systems have a test button on the float switch assembly
- Inspect and replace the air filter if it's dirty
- Look inside the drain pan for visible cracks or rust
- Do not restart the system until the source of the leak is identified and corrected
If standing water has been sitting for more than a day or you can smell mildew, treat the area with a diluted bleach solution to inhibit mold growth while you arrange service.
Water Damage: What's at Stake
Air handlers installed in closets, mechanical rooms, or attics can cause significant water damage if a leak goes unnoticed for days. Drywall saturated with water can develop mold within 24 to 48 hours in Winter Haven's warm conditions — and mold remediation costs far more than any HVAC repair. Some Winter Haven homeowners have discovered leaks only after noticing water stains on a downstairs ceiling — indicating the air handler above was leaking into the floor/ceiling assembly.
Installing a water alarm sensor in the secondary drain pan is inexpensive insurance. These alarms sound when water contacts the sensor in the pan, alerting you before a minor overflow becomes a major water damage claim.
Frequently Asked Questions
Is it normal for AC units to drip water outside?
Yes. Condensate water that drains properly exits the system at the outdoor condensate discharge point, creating a small puddle or trickle near the outdoor unit or at a designated drain location. A steady drip from the discharge point is completely normal, especially on humid days. Water inside the home or inside the mechanical space where the air handler sits is not normal and requires attention.
Why does my AC leak water only on humid days?
On high-humidity days like those common throughout Winter Haven's summer, your AC removes significantly more moisture from the air — potentially 2 to 3 times more than on moderate-humidity days. A drain line that handles a normal condensate load may not handle the increased volume on peak humidity days. This is a sign that the drain line is partially clogged and needs to be cleared before it develops a complete blockage.
Can a leaking AC cause mold in my home?
Yes, and in Florida's climate this happens quickly. Standing water in a drain pan or water that has soaked into drywall, insulation, or flooring can develop mold in as little as 24 to 48 hours in warm, humid conditions. Addressing a water leak the same day you find it is important. If water has been present for more than a day or you detect a musty smell, have both the HVAC issue and any affected building materials assessed.
Stop the Leak Before It Becomes Water Damage
